Wall-mounted HEPA Fan VT501-F brings filtered fresh air into a single room with a compact wall-mounted body, helping bedrooms, apartments and offices feel fresher without central ductwork.
Wall-mounted HEPA Fan VT501-F is designed for rooms that need fresh outdoor air with filtration but do not require a complete heat recovery system.
Its compact wall-mounted format makes it suitable for bedrooms, apartments, offices and retrofit spaces where simple installation matters.
Built for filtered single-room fresh air, VT501-F combines HEPA support, quiet running and wall-mounted installation.

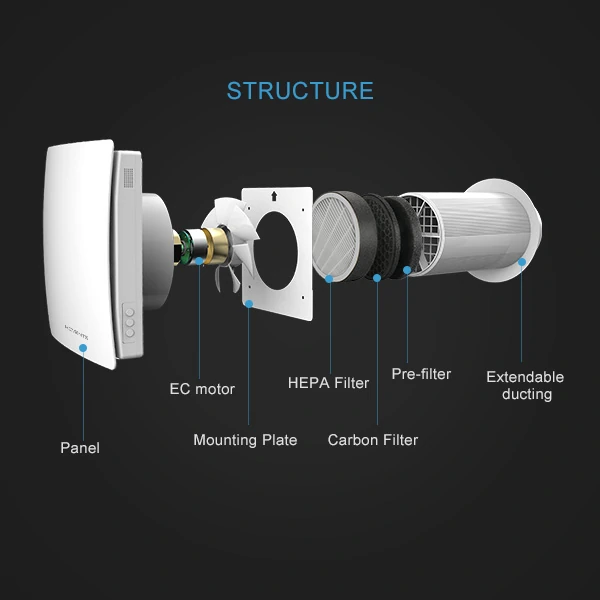

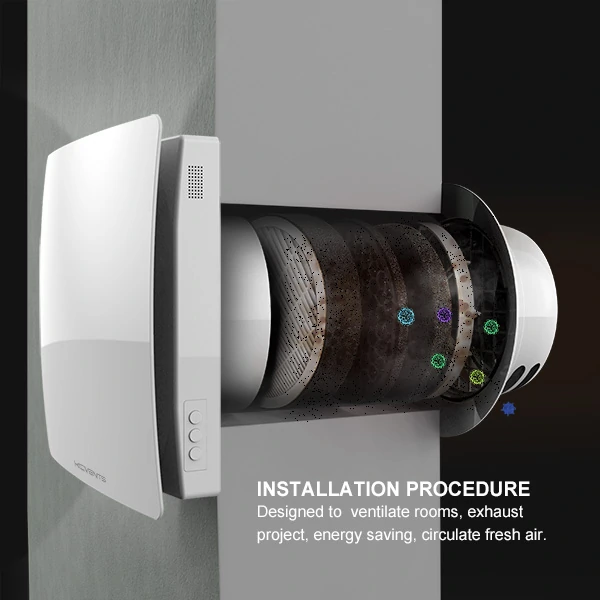

The filter helps reduce dust and particles in incoming air.
Quiet DC operation keeps the unit suitable for occupied rooms.

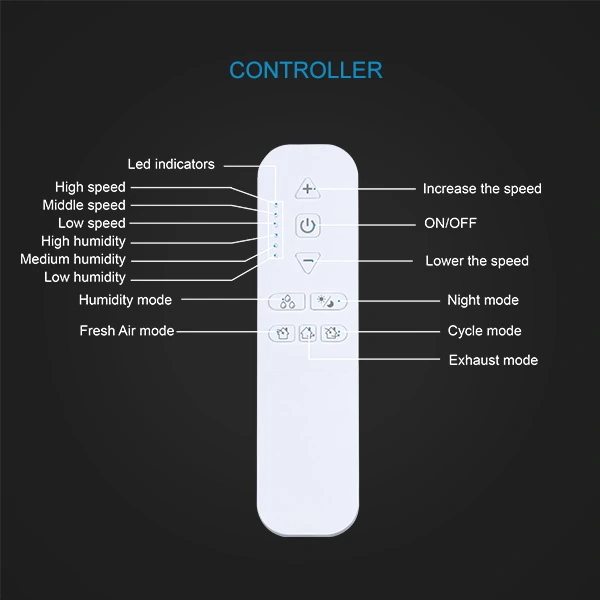

Speed options help match airflow to room conditions.

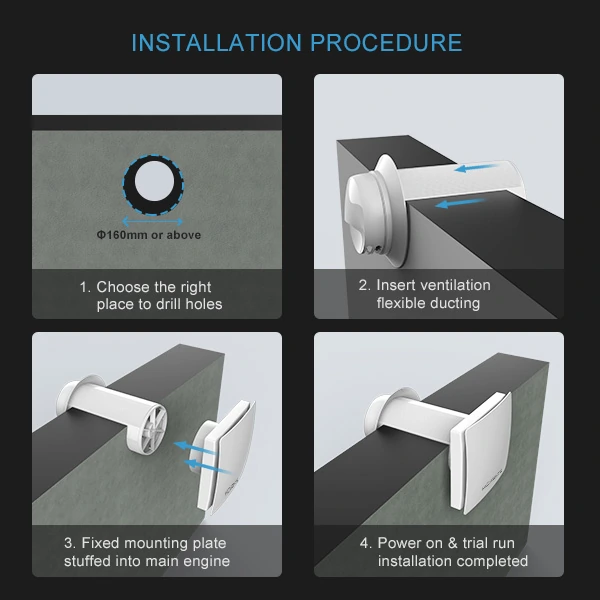

Wall-mounted format avoids large duct systems.
Operates with an ultra-low power draw of just 1.8W to 7.0W.
Fresh air supply helps rooms feel cleaner and easier to breathe in.

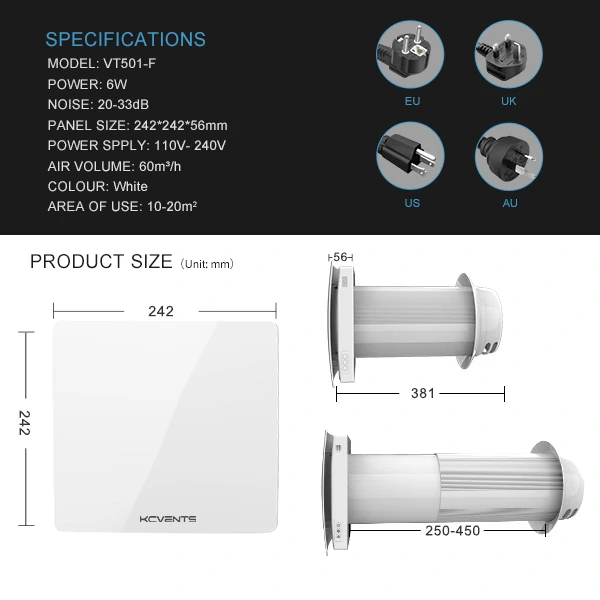

| Parameter | Value |
|---|---|
| Diameter Unit | 160 mm |
| Exterior Tube | 163 mm |
| Diameter/Wall Thickness | Standard: 250 mm – 500 mm |
| Installation Tube (can be cut) | 250 mm to 500 mm |
| Inside Cover | 242 mm × 242 mm |
| Speed | Power (W) | Current (Amps) | Air Capacity (m³/h) | Speed (RPM) | Voltage (Vac) | Operating Temperature | Area of Use (m²) |
|---|---|---|---|---|---|---|---|
| I | 1.8 | 0.019 | 48 | 1100 | 90-240 | -20 to +50°C | 10-20 |
| II | 3.9 | 0.034 | 54 | 1800 | 90-240 | -20 to +50°C | 10-20 |
| III | 7.0 | 0.0533 | 60 | 2200 | 90-240 | -20 to +50°C | 10-20 |
Filtered fresh air for single rooms, apartments and small commercial spaces.
Quiet fresh-air support for sleep spaces.
Simple wall-mounted ventilation for individual rooms.
Helps reduce stale air in compact workspaces.
We eliminate procurement and installation risks through rigorous factory verification and straightforward B2B warranty support.
Every batch undergoes strict functional and dimensional routing tests, including filter fit, motor startup, speed switching, airflow verification, wall tube sizing and model-to-table parameter matching. We ensure that every single unit arrives at your project site fully functional and ready for flawless installation.
We stand firmly behind our manufacturing craftsmanship. In the rare event of any material defect or mechanical failure under standard project operations, KCVENTS provides a straightforward, hassle-free hardware replacement service to secure your timeline.
As a global manufacturer of HVAC and ventilation equipment, KCVENTS is dedicated to providing flexible customization services and robust long-term supply chain warranty terms for contractors, brands, and wholesalers.
We support full private labeling (OEM) and custom housing finishes. Our ODM engineering covers custom chassis modifications, specialized airflow curves, and regional electrical standards (e.g., 110V/60Hz, 24V variable frequency).
For large-scale HVAC and green building deployments, we offer structured MOQ tiers, staged shipping contracts, and agile multi-batch delivery aligned with your construction timeline. Technical submittals and parameter validation are included.
Motors enjoy an extended warranty of up to 3 to 5 years, backed by a comprehensive 1-year full system warranty. Bulk orders are eligible for a dedicated percentage of maintenance spares along with 1-on-1 remote engineering support.
