PM2.5 Fresh Air Unit is a compact fresh-air solution for bedrooms and small indoor spaces, combining low power use, quiet running and high-efficiency filtration for cleaner daily breathing.
PM2.5 Fresh Air Unit is designed for rooms that need cleaner air without a bulky system or loud operation. It combines fresh-air delivery and purification in a compact wall-mounted format for everyday indoor use.
The product is especially suited to bedrooms, apartments and small project spaces where low power, quiet operation and stable filtration matter every day.
Built for dependable room-scale ventilation, the PM2.5 unit balances low power, quiet operation and filtration performance in a compact form factor.

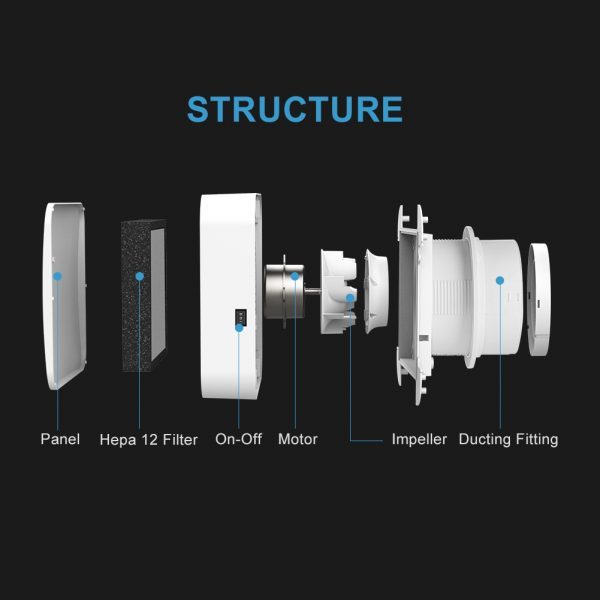

Using DC brushless motor technology, the unit keeps energy consumption as low as 8W and supports long-hour continuous running.

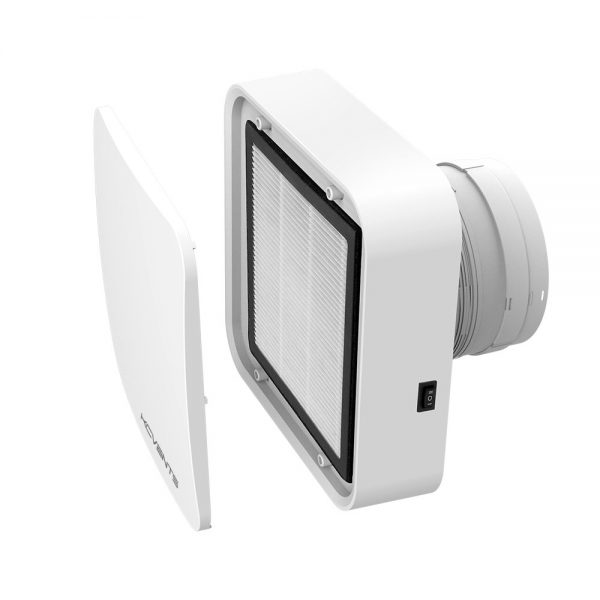

The panel lifting structure helps prevent air backflow, reducing the chance of polluted air re-entering the room twice.

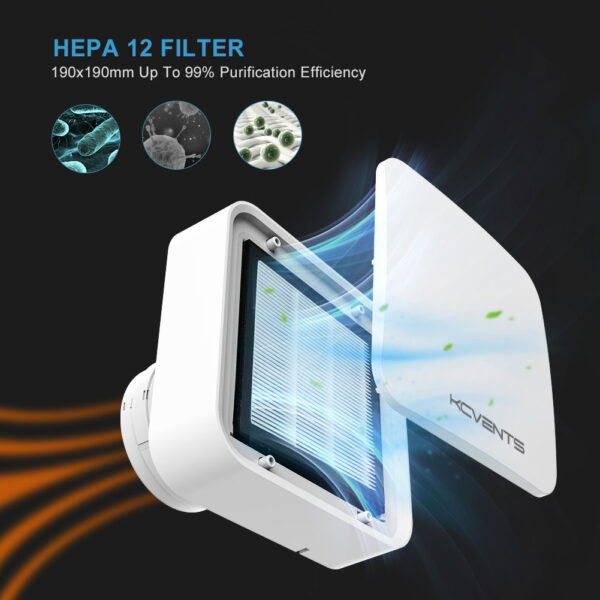

HEPA filtration captures particles as small as 0.3 microns, including PM2.5, dust, mites, pet dander and pollen.
20-30 dB operation keeps the unit suitable for sleep spaces, bedrooms and other quiet indoor environments.

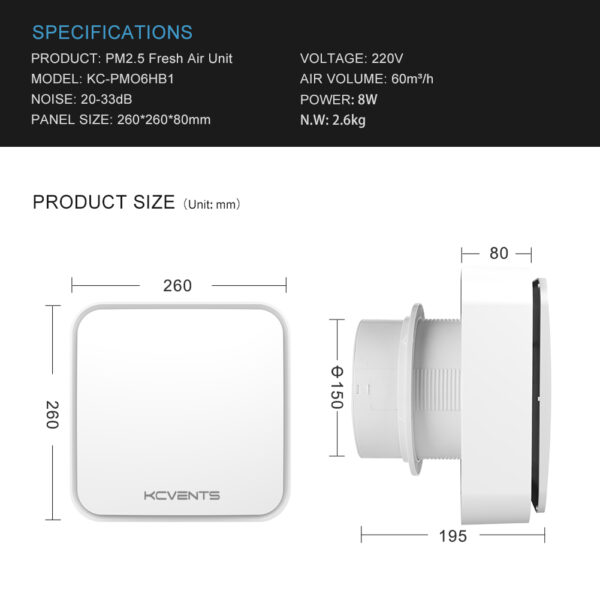

The 260x260x80mm footprint and 2.6kg net weight make it easier to integrate into practical room layouts.
With 60m³/h airflow and 220V/50Hz power, it delivers a simple fresh-air solution for compact applications.
| Model | Voltage | Noise | Airflow | Power | Weight (N.W) | Dimensions |
|---|---|---|---|---|---|---|
| KC-PMO6HB1 | 220V/50Hz | 20-30dB | 60m³/h | 8W | 2.6kg | 260x260x80mm |
Versatile clean air solutions engineered for a wide range of compact and personal spaces.
Quiet overnight fresh air support for sleeping rooms and personal comfort spaces.
Compact rooms and residential units that need stable air refresh without a large duct system.
Studios, sample rooms and light commercial spaces where low noise and easy integration matter.
We consistently adhere to rigorous manufacturing standards, precision testing procedures, and systematic inspection metrics to ensure that every piece of KCVENTS equipment leaving our facility delivers exceptional consistency, energy efficiency, and safety compliance.
Premium brushless DC (BLDC) motors undergo multi-dimensional continuous load and temperature rise monitoring to ensure ultra-high energy efficiency, stability, and long-lifecycle whisper-quiet operation during daily use.
Utilizing high-efficiency HEPA 12 filters, each unit undergoes secondary housing integration and rigorous airtightness verification on the assembly line to completely eliminate bypass leakage and guarantee uniform particulate capture.
The panel lift height and aerodynamic resistance distribution are meticulously calibrated. Validated via multi-angle smoke flow visualizations, the design ensures a powerful, continuous supply of unidirectional laminar clean air.
Full operational testing is mandatory. Acoustic dampening levels (dB), total static pressure, and power consumption must align precisely with or exceed our published factory data sheet benchmarks.
As a global manufacturer of HVAC and ventilation equipment, KCVENTS is dedicated to providing flexible customization services and robust long-term supply chain warranty terms for contractors, brands, and wholesalers.
We support full private labeling (OEM) and custom housing finishes. Our ODM engineering covers custom chassis modifications, specialized airflow curves, and regional electrical standards (e.g., 110V/60Hz, 24V variable frequency).
For large-scale HVAC and green building deployments, we offer structured MOQ tiers, staged shipping contracts, and agile multi-batch delivery aligned with your construction timeline. Technical submittals and parameter validation are included.
Motors enjoy an extended warranty of up to 3 to 5 years, backed by a comprehensive 1-year full system warranty. Bulk orders are eligible for a dedicated percentage of maintenance spares along with 1-on-1 remote engineering support.
Yes. The low-noise (20-30dB) and compact design make it perfectly suitable for bedrooms and similar quiet rooms.
The high-efficiency HEPA 12 filter is designed to capture fine particles such as PM2.5, dust, mites, pet dander, and pollen down to 0.3 microns.
The published engineering data lists an ultra-low 8W power consumption, supporting cost-effective, continuous 24/7 operation.
