In-Line Series is a galvanized inline duct fan built for stable, energy-conscious airflow through concealed ventilation routes, complex ductwork and long-distance air delivery.
In-Line Series is designed for duct systems that need compact installation, strong static pressure and reliable long-distance air delivery.
Its galvanized metal body, centrifugal impeller and broad model range make it practical for bathrooms, offices, commercial rooms and larger ducted ventilation projects.
Built for efficient duct ventilation, In-Line Series combines motor efficiency, galvanized construction and strong static pressure.
The body fits ceiling and duct spaces without bulky equipment.
Model range supports small and medium room ventilation.

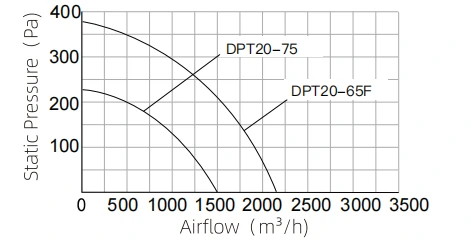

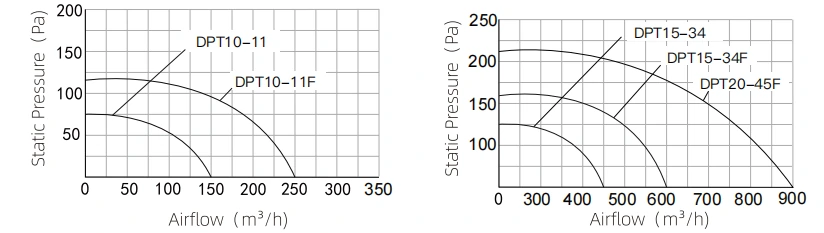

Published pressure data helps match duct resistance.
Durable casing supports long-term use.
High and low operation helps tune airflow and sound.
Multiple sizes help match common duct diameters.

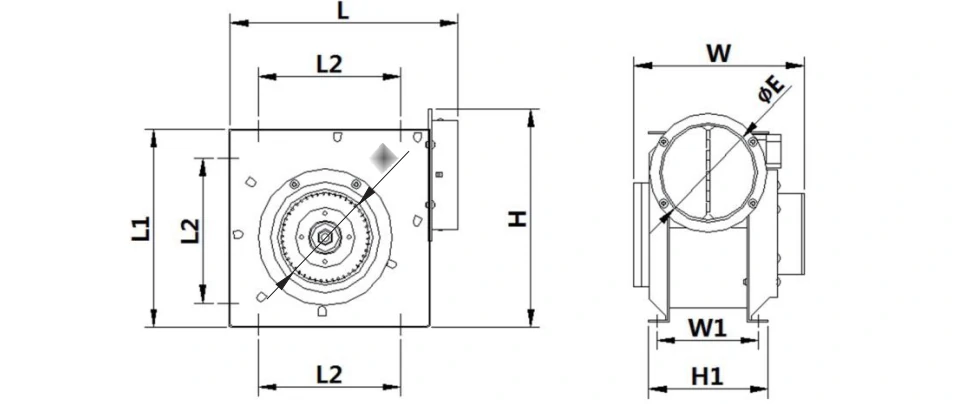

| Model | L | L1 | L2 | W | W1 | H | H1 | E | I |
|---|---|---|---|---|---|---|---|---|---|
| DPT10-11 | 246 | 181 | 122.5 | 206 | 111.5 | 194 | 139 | Φ98 | Φ98 |
| DPT10-11F | 246 | 181 | 122.5 | 206 | 111.5 | 194 | 139 | Φ98 | Φ98 |
| DPT15-34 | 306 | 230 | 122.5 | 247 | 141.5 | 259 | 176 | Φ150 | Φ150 |
| DPT15-34F | 306 | 230 | 122.5 | 247 | 141.5 | 259 | 176 | Φ150 | Φ150 |
| DPT20-45F | 369 | 297 | 170 | 290 | 185.5 | 325 | 220 | Φ200 | Φ200 |
| DPT20-65F | 369 | 297 | 170 | 290 | 185.5 | 325 | 220 | Φ200 | Φ200 |
| DPT20-75 | 403 | 331 | 198 | 323 | 226 | 362 | 295 | Φ200 | Φ200 |
| Model | Voltage(V) | Frequency(Hz) | Gear | Power(W) | Airflow(m³/h) | Static Pressure(Pa) | Noise(dB) | Duct Size(mm) | Application Area(m²) | N.M(kg) | Box/Piece |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DPT10-11 | 220 | 50 | H/L | 28/23 | 150/100 | 65/55 | 40/35 | φ100 | 6-10 | 2.3 | 8 |
| DPT10-11F | 220 | 50 | H/L | 30/26 | 250/180 | 106/80 | 45/40 | φ100 | 10-12 | 2.3 | 8 |
| DPT15-34 | 220 | 50 | H/L | 33/27 | 400/300 | 127/120 | 42/38 | φ150 | 10-25 | 3.5 | 4 |
| DPT15-34F | 220 | 50 | H/L | 70/53 | 600/500 | 170/150 | 46/42 | φ150 | 10-25 | 4.6 | 4 |
| DPT20-45F | 220 | 50 | H/L | 120/106 | 900/750 | 207/190 | 48/46 | φ200 | 25-38 | 7.8 | 1 |
| DPT20-65F | 220 | 50 | H/L | 190/180 | 1500/1350 | 220/200 | 52/50 | φ200 | 48-80 | 8.5 | 1 |
| DPT20-75 | 220 | 50 | H/L | 270/265 | 2100/1800 | 380/290 | 62/55 | φ200 | 80-90 | 10.5 | 1 |
Inline duct ventilation for bathrooms, offices, commercial rooms and service spaces.
Compact exhaust for moisture and stale air.
Duct ventilation for occupied commercial spaces.
Air movement for technical or utility areas.
We eliminate procurement and installation risks through rigorous factory verification and straightforward B2B warranty support.
Every batch undergoes strict functional and dimensional routing tests, including motor startup, housing fit, duct diameter alignment, airflow and pressure verification, noise review and model-to-table parameter matching. We ensure that every single unit arrives at your project site fully functional and ready for flawless installation.
We stand firmly behind our manufacturing craftsmanship. In the rare event of any material defect or mechanical failure under standard project operations, KCVENTS provides a straightforward, hassle-free hardware replacement service to secure your timeline.
As a global manufacturer of HVAC and ventilation equipment, KCVENTS is dedicated to providing flexible customization services and robust long-term supply chain warranty terms for contractors, brands, and wholesalers.
We support full private labeling (OEM) and custom housing finishes. Our ODM engineering covers custom chassis modifications, specialized airflow curves, and regional electrical standards (e.g., 110V/60Hz, 24V variable frequency).
For large-scale HVAC and green building deployments, we offer structured MOQ tiers, staged shipping contracts, and agile multi-batch delivery aligned with your construction timeline. Technical submittals and parameter validation are included.
Motors enjoy an extended warranty of up to 3 to 5 years, backed by a comprehensive 1-year full system warranty. Bulk orders are eligible for a dedicated percentage of maintenance spares along with 1-on-1 remote engineering support.
