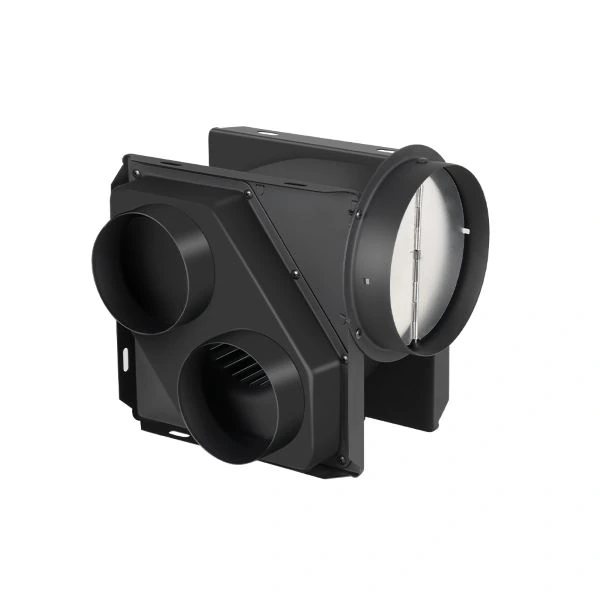

In-Line Series 2 Ways is a dual-flow inline duct fan for ventilation layouts that need steady airflow distribution, compact installation and long-distance air delivery.
In-Line Series 2 Ways is engineered to keep air moving smoothly and quietly across long duct runs. Compact in size, solid in construction and efficient in every detail, it delivers dependable airflow day after day without drawing attention.
At its core, an energy-saving copper motor with ball bearings works with a centrifugal impeller and streamlined duct path to reduce resistance, vibration and wasted power.
The all-metal galvanized housing feels robust from the moment you handle it. Formed for strength and corrosion resistance, it is built for continuous ventilation in residential, commercial and light industrial conditions.
Multiple model options make the series adaptable to different duct sizes and airflow targets. It can work as a stand-alone solution or connect with other fans to extend air distance and pressure.
Built for flexible duct branching, this series combines dual outlet structure, static pressure and durable metal construction.
The 1-to-2 structure helps optimize pressure stability and airflow distribution through branch ducts.
Copper motor design and ball bearings support smooth, low-noise running over long service periods.
Strong pressure capability helps deliver air through extended duct runs and complex layouts.
Steel construction resists rust, warping and vibration in continuous operation.
Quiet performance keeps the fan suitable for homes, offices and utility spaces.
Multiple sizes can work independently or in combination with other fans.

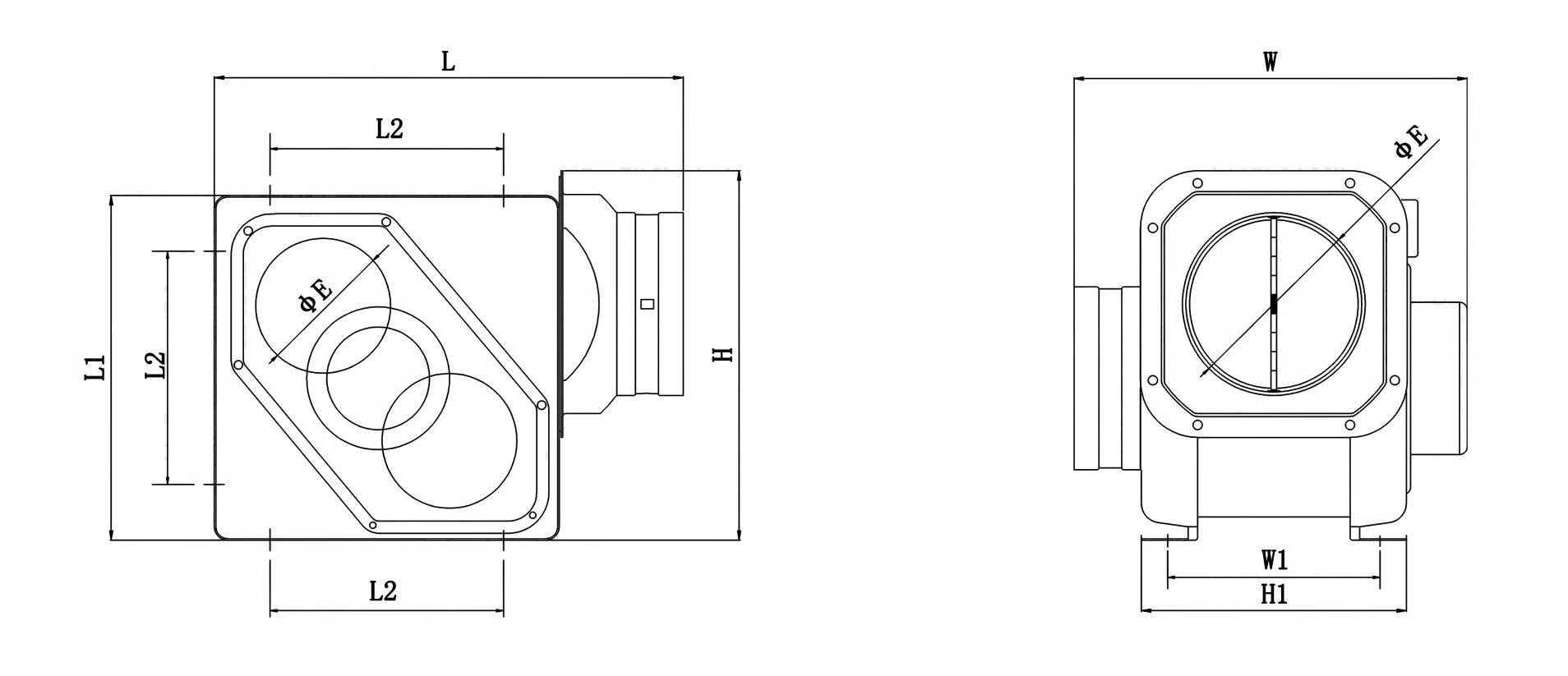

| Model | L | L1 | L2 | ΦE | W | W1 | H | H1 | ΦI |
|---|---|---|---|---|---|---|---|---|---|
| DPT10-11(1T2) | 580 | 403 | 300 | 75 | 400 | 437 | 199 | 118 | 98 |
| DPT10-11F(1T2) | 551 | 403 | 300 | 75 | 400 | 437 | 199 | 118 | 98 |
| DPT10-34(1T2) | 551 | 403 | 300 | 100 | 400 | 437 | 250 | 157 | 150 |
| Model | Voltage (V/Hz) |
Speed | Power (W) |
Airflow (m³/h) |

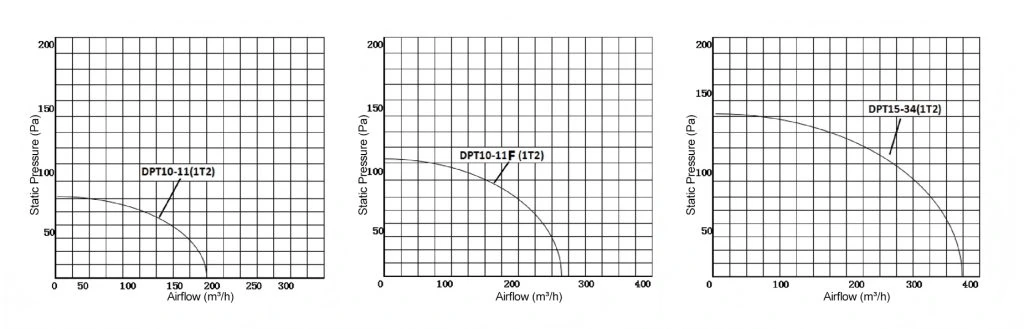

Static Pressure (Pa) |
Noise (dB) |
Duct Diameter Φ(mm) |
|---|---|---|---|---|---|---|---|
| DPT10-11(1T2) | 220-50 | H | 23 | 160 | 75 | 38 | 100 |
| DPT10-11F(1T2) | 220-50 | H | 30 | 200 | 250 | 43 | 100 |
| DPT10-34(1T2) | 220-50 | H | 42 | 400 | 155 | 52 | 150 |
Dual outlet inline ventilation for homes, offices and commercial duct systems that need compact branch airflow.
Supports two-room or two-branch exhaust layouts from one fan position.
Helps distribute fresh or exhaust airflow through compact duct systems.
Provides branch ventilation for technical or service spaces with limited room for multiple fans.
We eliminate procurement and installation risks through rigorous factory verification and straightforward B2B warranty support.
Every batch undergoes strict functional and dimensional routing tests, including motor startup, dual outlet casing fit, duct diameter alignment, airflow and static pressure verification, noise review and model-to-table parameter matching. We ensure that every single unit arrives at your project site fully functional and ready for flawless installation.
We stand firmly behind our manufacturing craftsmanship. In the rare event of any material defect or mechanical failure under standard project operations, KCVENTS provides a straightforward, hassle-free hardware replacement service to secure your timeline.
As a global manufacturer of HVAC and ventilation equipment, KCVENTS is dedicated to providing flexible customization services and robust long-term supply chain warranty terms for contractors, brands, and wholesalers.
We support full private labeling (OEM) and custom housing finishes. Our ODM engineering covers custom chassis modifications, specialized airflow curves, and regional electrical standards (e.g., 110V/60Hz, 24V variable frequency).
For large-scale HVAC and green building deployments, we offer structured MOQ tiers, staged shipping contracts, and agile multi-batch delivery aligned with your construction timeline. Technical submittals and parameter validation are included.
Motors enjoy an extended warranty of up to 3 to 5 years, backed by a comprehensive 1-year full system warranty. Bulk orders are eligible for a dedicated percentage of maintenance spares along with 1-on-1 remote engineering support.
