High Pressure Air Cabinet Fan is designed for industrial control cabinets, power distribution boxes and high-resistance ventilation systems that need stable pressure and strong cooling airflow.
High Pressure Air Cabinet Fan is built for industrial equipment and duct systems where ordinary airflow is not enough.
It delivers stable pressure and large airflow for control cabinets, power distribution boxes, sealed equipment spaces and high-resistance ventilation routes.
Built for high-resistance ventilation, this cabinet fan combines pressure stability, cooling airflow and durable industrial integration.
Strong pressure support helps move air through more resistant duct networks.
Large airflow models support bigger spaces and heavier ventilation loads.
Cabinet structure supports durable project installation.
380V operation fits factory and commercial systems.
Published sizes make connection planning easier.
Data-rich model range supports procurement comparison.
| Model | L | L1 | W | W1 | H | HI | D1 | F | Air Outlet Size (AXB) | Air Inlet Size (CXD) |
|---|---|---|---|---|---|---|---|---|---|---|
| DT28-6000 | 620 | 520 | 700 | 750 | 615 | 100 | 50 | 25 | 405X285 | 630X565 |
| DT30-8000 | 650 | 550 | 750 | 800 | 650 | 100 | 50 | 25 | 430X300 | 680X600 |
| DT30-10000 | 650 | 550 | 750 | 800 | 650 | 100 | 50 | 25 | 430X300 | 680X600 |
| DT32-12000 | 725 | 625 | 800 | 850 | 725 | 100 | 50 | 25 | 405X330 | 730X675 |

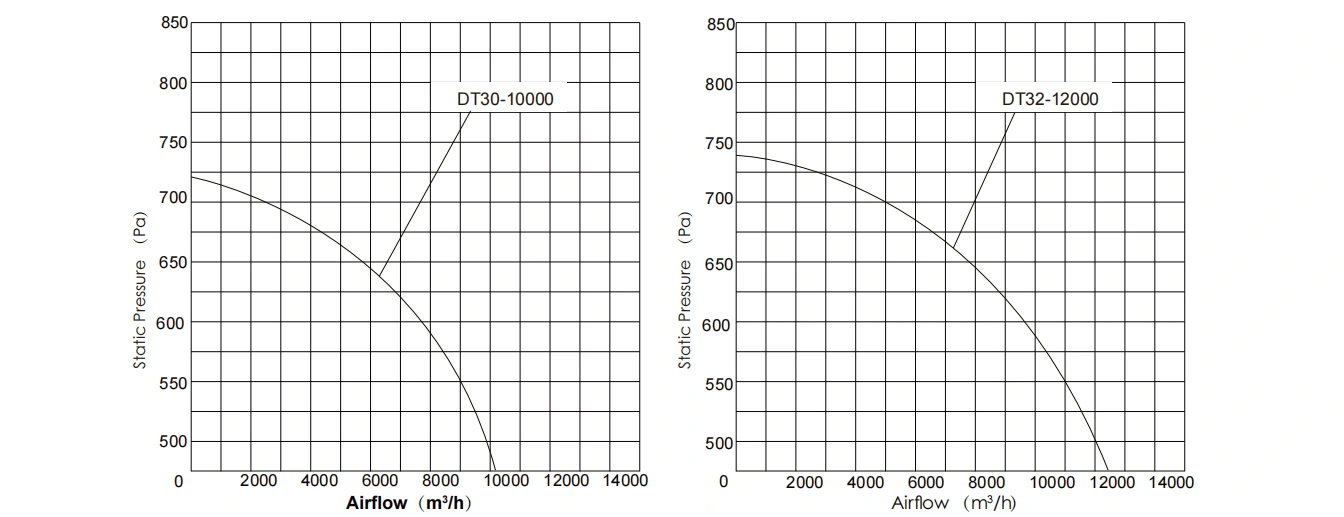

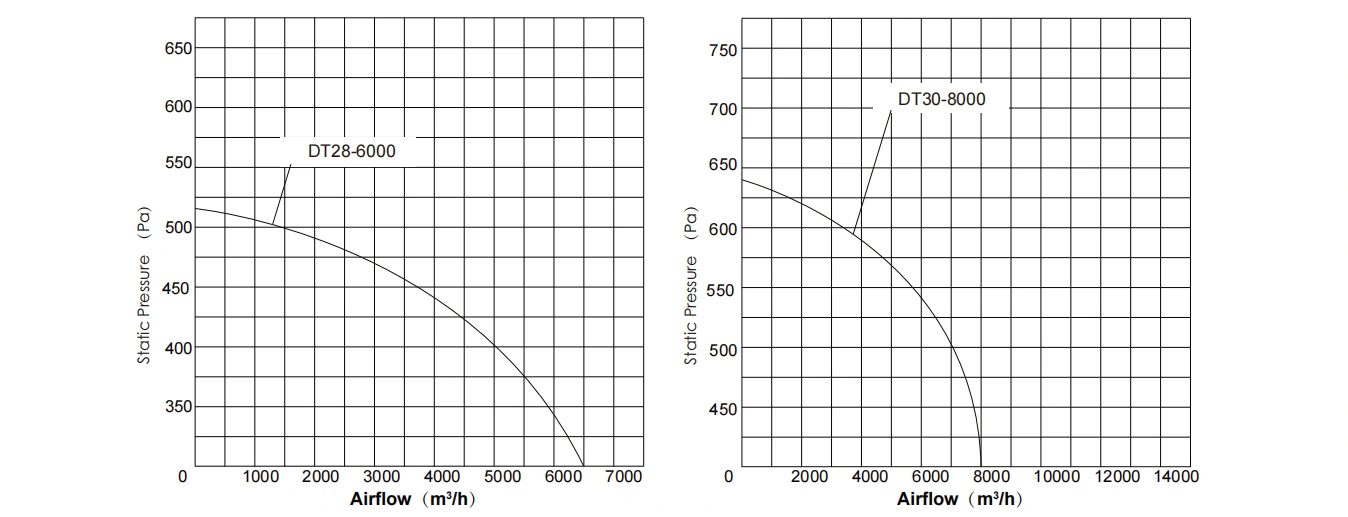

| Model | Voltage(V) | Frequency(Hz) | speed(RPM) | Power(W) | Airflow(m³/h) | Static Pressure(Pa) | Noise(dB) | N.M(kg) |
|---|---|---|---|---|---|---|---|---|
| DT28-6000 | 380 | 50 | 1400-1450 | 1500 | 6500-4800 | 520-710 | 64 | 60 |
| DT30-8000 | 380 | 50 | 1400-1450 | 2200 | 8500-6500 | 640-740 | 67 | 68 |
| DT30-10000 | 380 | 50 | 1400-1450 | 3000 | 10500-8500 | 720-800 | 70 | 72 |
| DT32-12000 | 380 | 50 | 1400-1450 | 4000 | 12500-9000 | 740-850 | 73 | 90 |
High-pressure cabinet ventilation for factories, workshops, large commercial rooms and duct systems.
Moves large volumes of air through industrial spaces.
Supports duct ventilation in bigger buildings.
Useful where static pressure demand is higher.
We eliminate procurement and installation risks through rigorous factory verification and straightforward B2B warranty support.
Every batch undergoes strict functional and dimensional routing tests, including motor load, cabinet fit, duct connection alignment, airflow and static pressure verification, noise review and model-to-table parameter matching. We ensure that every single unit arrives at your project site fully functional and ready for flawless installation.
We stand firmly behind our manufacturing craftsmanship. In the rare event of any material defect or mechanical failure under standard project operations, KCVENTS provides a straightforward, hassle-free hardware replacement service to secure your timeline.
As a global manufacturer of HVAC and ventilation equipment, KCVENTS is dedicated to providing flexible customization services and robust long-term supply chain warranty terms for contractors, brands, and wholesalers.
We support full private labeling (OEM) and custom housing finishes. Our ODM engineering covers custom chassis modifications, specialized airflow curves, and regional electrical standards (e.g., 110V/60Hz, 24V variable frequency).
For large-scale HVAC and green building deployments, we offer structured MOQ tiers, staged shipping contracts, and agile multi-batch delivery aligned with your construction timeline. Technical submittals and parameter validation are included.
Motors enjoy an extended warranty of up to 3 to 5 years, backed by a comprehensive 1-year full system warranty. Bulk orders are eligible for a dedicated percentage of maintenance spares along with 1-on-1 remote engineering support.
