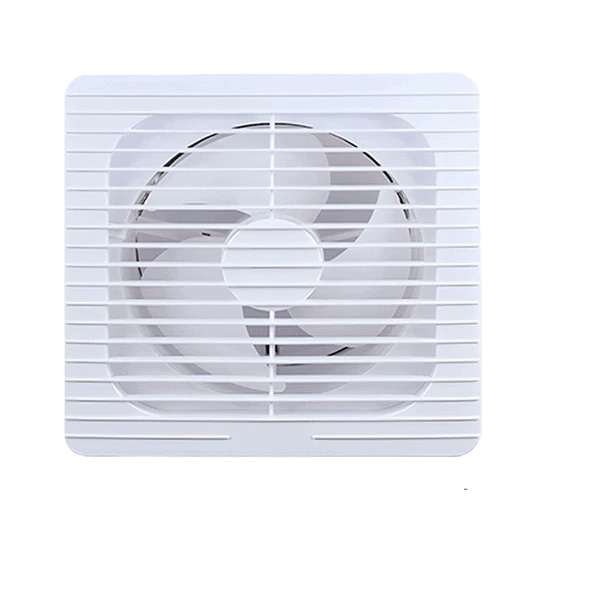

EC Bathroom Fan is a compact EC wall exhaust fan for bathrooms, kitchens and small rooms, combining low power consumption, quiet ventilation and simple installation.
EC Bathroom Fan is designed for efficient small-room exhaust with a high-performance EC motor and compact wall-mounted structure.
It helps remove humidity, odors and stale air from bathrooms, kitchens and commercial rooms while keeping power demand and noise low.
Built for quiet daily exhaust, this fan combines EC motor efficiency, corrosion-resistant construction and simple installation.
EC motor operation helps reduce daily energy use.
Common sizes help match bathroom and utility openings.
Controlled noise supports comfortable use in occupied rooms.
The fan is practical for direct wall exhaust.
Airflow range supports small and medium bathroom spaces.
Helps remove moisture, odors and stale air.

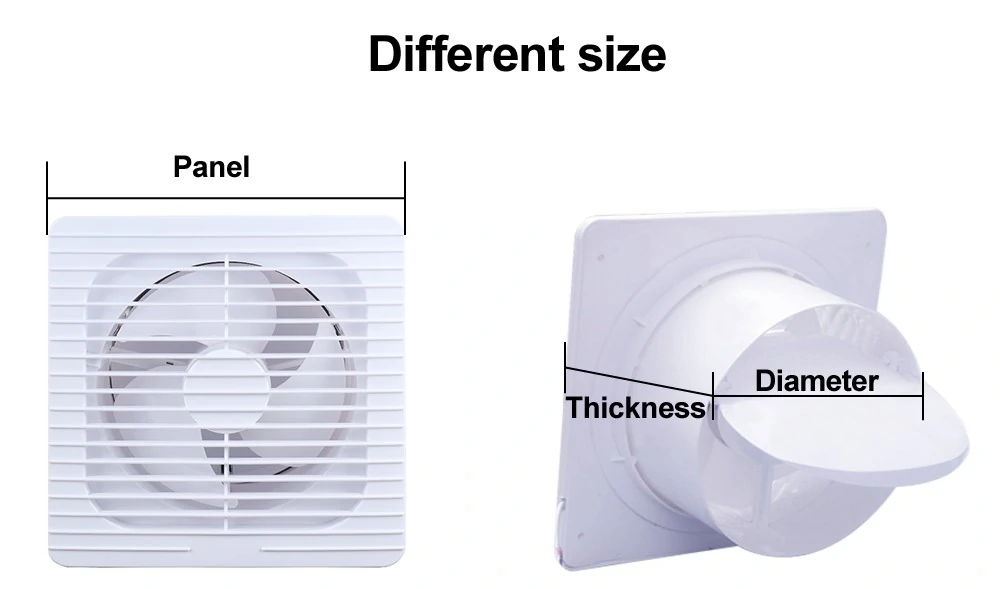

| Model | Panel | Thickness | Diameter |
|---|---|---|---|
| APC10 – EC | 142*142 | 75 | 98 |
| APC15 – EC | 200*200 | 75 | 150 |
| APC20 – EC | 250*250 | 100 | 180 |
| Model | Voltage (V/Hz) | Power (W) | Airflow (m³/h) | Speed (r/min) | Noise (dB) | Size (mm) | Hole Size (mm) |
|---|---|---|---|---|---|---|---|
| APC10 – EC | 220V – 50Hz | 4 | 192 | 1800 | 38 | 1427798 | 102 – 103 |
| APC15 – EC | 220V – 50Hz | 5 | 192 | 1800 | 40 | 20087150 | 152 – 158 |
| APC20 – EC | 220V – 50Hz | 6 | 258 | 1800 | 42 | 250100180 | 198 – 203 |
Low-power wall exhaust for bathrooms, toilets, kitchens and small utility rooms.
Removes humidity and stale air after bathing.
Supports daily odor and moisture exhaust.
Compact ventilation for light-duty exhaust needs.
We eliminate procurement and installation risks through rigorous factory verification and straightforward B2B warranty support.
Every batch undergoes strict functional and dimensional routing tests, including EC motor startup, panel fit, duct opening size alignment, airflow verification, noise review and model-to-table parameter matching. We ensure that every single unit arrives at your project site fully functional and ready for flawless installation.
We stand firmly behind our manufacturing craftsmanship. In the rare event of any material defect or mechanical failure under standard project operations, KCVENTS provides a straightforward, hassle-free hardware replacement service to secure your timeline.
As a global manufacturer of HVAC and ventilation equipment, KCVENTS is dedicated to providing flexible customization services and robust long-term supply chain warranty terms for contractors, brands, and wholesalers.
We support full private labeling (OEM) and custom housing finishes. Our ODM engineering covers custom chassis modifications, specialized airflow curves, and regional electrical standards (e.g., 110V/60Hz, 24V variable frequency).
For large-scale HVAC and green building deployments, we offer structured MOQ tiers, staged shipping contracts, and agile multi-batch delivery aligned with your construction timeline. Technical submittals and parameter validation are included.
Motors enjoy an extended warranty of up to 3 to 5 years, backed by a comprehensive 1-year full system warranty. Bulk orders are eligible for a dedicated percentage of maintenance spares along with 1-on-1 remote engineering support.
